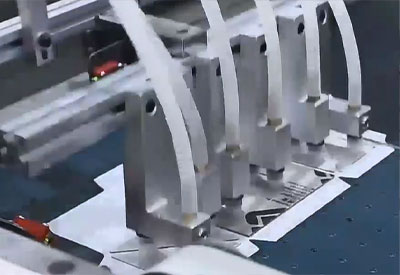

4 photoelectricity Positioning is more accurate
ZDH-700K
Automatic Collapsible Box Wing Making Machine
INQUIRE NOW
Features
The ZDH-700K automatic collapsible box wing making machine uses 12-servo control and photoelectric positioning to produce accurately wrapped box wings.
Developed by HORDA in cooperation with Zhejiang University, the machine integrates paper feeding, gluing, board feeding, positioning, long-edge pressing, short-edge folding and collection into one automated process. Four-point photoelectric positioning helps maintain consistent alignment before wrapping.
An insert-plate clamping structure secures the greyboard while downward pressure tightens the long-edge wrap. Secondary flattening improves the flatness and surface consistency of each finished wing, preparing it for stable downstream assembly into collapsible and flat-pack rigid boxes.

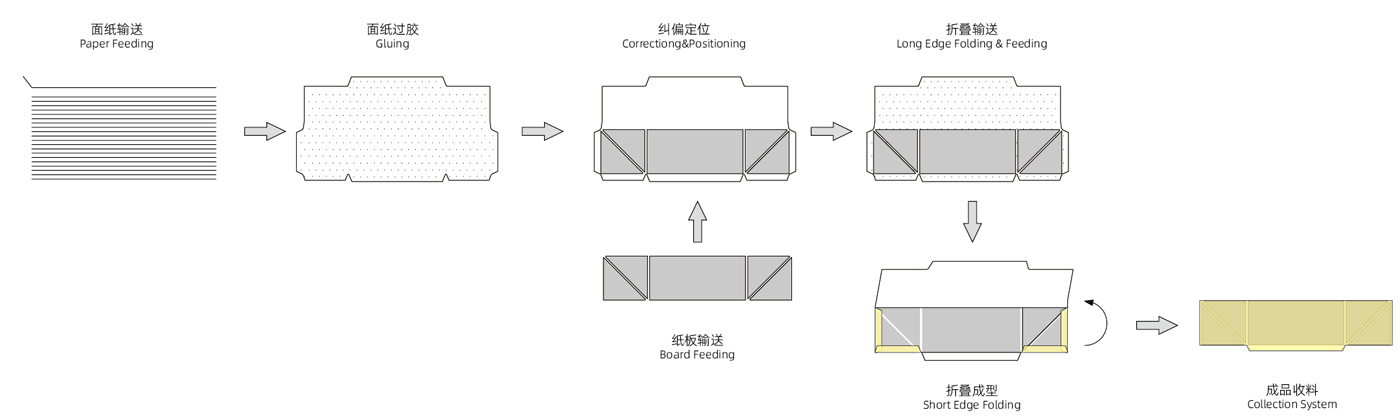

Process Flow
Technical Parameters
| Model | ZDH-700K | |
| Maximum size | mm | 180×700 |
| Minimum size | mm | 38×200 |
| Paper weight | g | 100-200 |
| Board thickness | mm | 1.0-3.0 |
| Side board thickness | mm | 0.5-2 |
| Speed | Pieces/min | 20-30 |
| Positioning accuraCy | mm | ±0.25 |
| Power supply | KW | 20 |
| Weight | kg | 3500 |
| Dimension | mm | 7400×2500×1500 |
Component Details
Uses much less electricity than its peers

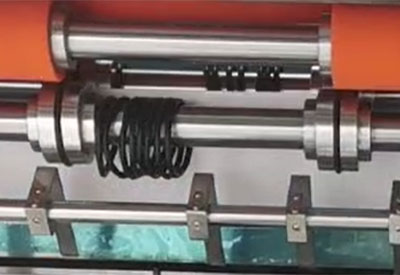

Pressing Long Edge Function

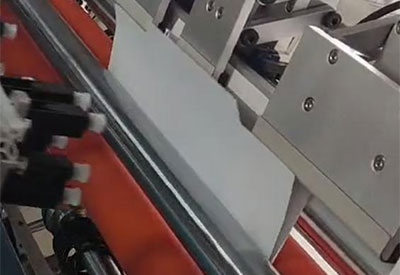

Adopting the structure of clamping the grey board with the insert plate and pressing down, wrapping the edger more tightly.

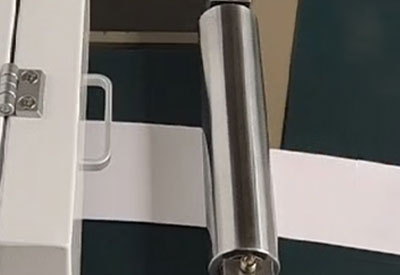

Secondary flattening
