The ZFM-700H/1000H automatic calendar cover and irregular case machine produces calendar covers, narrow-edge designs and other non-standard hardcover cases.

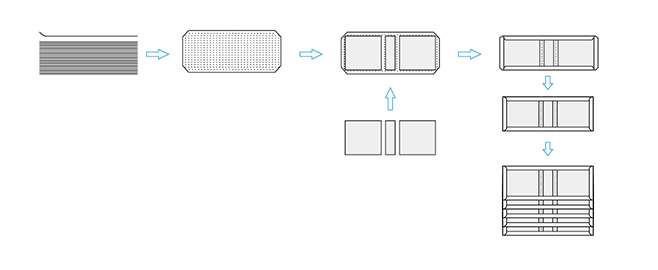

Dual-head edge folding and secondary conveyor positioning provide greater flexibility for uneven layouts, narrow side boards and different board combinations. Servo correction and corner-position detection help maintain alignment throughout gluing and folding, supporting a consistent finish across varied case structures.
An intelligent glue tank simplifies adhesive handling, while the integrated IoT module supports connected equipment management. The series is suitable for calendars, presentation folders, specialty book covers, customized packaging cases and other products requiring wider formats or unconventional edge structures.
| Model | ZFM-700H | ZFM-1000H | |
| Maximum size | mm | 450×720 | 600×1050 |
| Minimum size | mm | 90×180 | 120×240 |
| Paper weight | g | 105-210 | 105-210 |
| Board thickness | mm | 1.0-3.0 | 1.0-4.0 |
| Boards amount | Pieces | 1-6 | 1-6 |
| Minimum spine width | mm | 8 | 8 |
| Minimum side-board width | mm | 25 | 18 |
| Speed | Pieces/min | 20-30 | 25-35 |
| Positioning accuracy | mm | ±0.2 | ±0.2 |
| Power supply | kw | 16 | 24 |
| Weight | kg | 3500 | 6000 |
| Dimension | mm | 8500×2600×1500 | 10100×3000×2000 |
Share your box type, dimensions, materials, target output and factory conditions. Horda will help evaluate the suitable machine configuration for your project.
Tell us your material, size range and capacity. We will reply with a tailored quotation.
