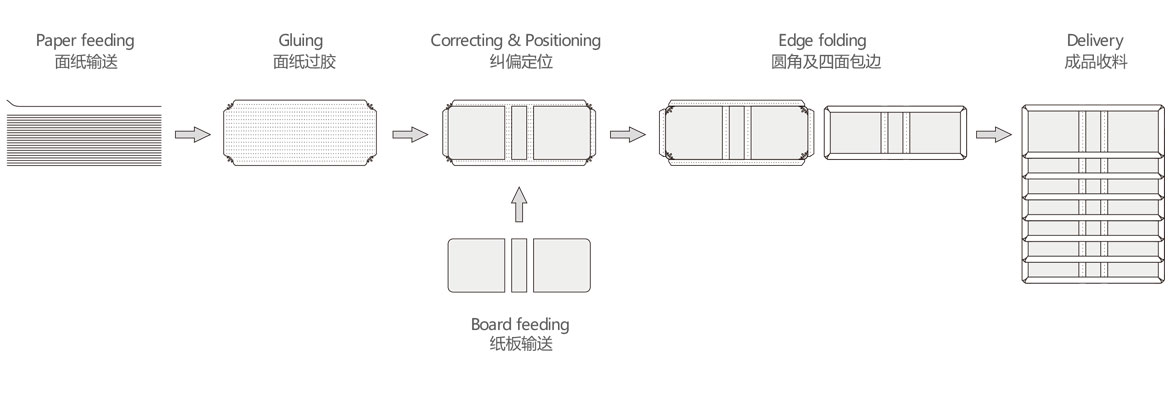

ZFM-700A-1000A-1350A large-format hardcover box machine processes hardcover cases up to 750 × 1,350 mm through automatic paper feeding, gluing, board positioning and four-side folding.
Available in three working formats, the series provides a consistent production platform for standard, medium and oversized cases. Servo-controlled paper and board handling maintains alignment through gluing, positioning and four-side folding, helping maintain board alignment and consistent edge wrapping across larger case formats.
Selected configurations can process triangular, curved and S-shaped case layouts without dedicated molds. It is suitable for large gift boxes, premium food and beverage packaging, presentation cases, albums, folders and other rigid packaging or hardcover products requiring a wider working format.
Selected control, transmission and pneumatic components support stable operation, accurate movement and reliable continuous production.
| Model | ZFM-700A | ZFM-1000A | ZFM-1350A | |
| Maximum size | mm | 450×720 | 600×1050 | 750×1350 |
| Minimum size | mm | 90×180 | 140×240 | 140×240 |
| Paper weight | g | 105-210 | 105-210 | 105-210 |
| Board thickness | mm | 1.0-3.0 | 1.0-3.0 | 1.0-3.0 |
| Boards amount | Pieces | 1-6 | 1-6 | 1-6 |
| Minimum spine width | mm | 8 | 8 | 8 |
| Minimum side-board width | mm | 25 | 25 | 25 |
| Speed | Pieces/min | 20-30 | 15-25 | 15-25 |
| Positioning accuracy | mm | ±0.2 | ±0.5 | ±0.5 |
| Power supply | kw | 16 | 18 | 19 |
| Weight | kg | 3500 | 5000 | 6000 |
| Dimension | mm | 8500×2600×1500 | 10440×3000×1500 | 11500×3000×1500 |
The system uses a high-precision camera for accurate positioning and a manipulator to feed boards at high speed.
