High-Speed Automatic Rigid Box Case Machine

ZFM-700K

High-Speed Rigid Box Machine

Case Size: 90 × 180–450 × 720 mm

Production Speed: 20–35 pcs/min

Positioning Accuracy: ±0.2 mm

Board Configuration: 1–6 pcs, 1.0–3.0 mm

Min. Spine / Side Board: 8 / 25 mm

INQUIRE NOW

Description
Process Flow
Application
Technical Parameters
Component Details

Description

The ZFM-700K high-speed automatic rigid box case machine produces up to 35 cases/min for high-volume packaging with automated feeding, gluing and four-side folding.

Its nine-servo motion control system coordinates each station to maintain a stable production rhythm across long runs. Photoelectric detection and servo correction support accurate material placement at higher operating speeds, while platform-based folding helps protect the cover surface and maintain a clean finish.

The machine is suitable for repeat and high-volume orders involving book-style rigid boxes, hardcover cases, folders, calendars and premium packaging for food, beverages, tobacco, cosmetics and electronics.

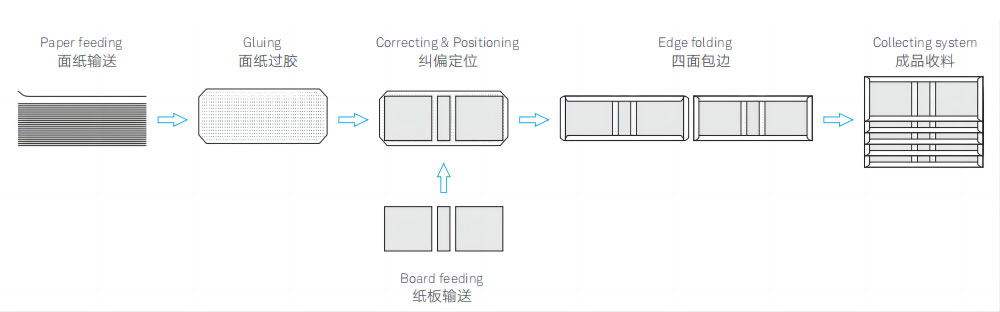

Process Flow

Application

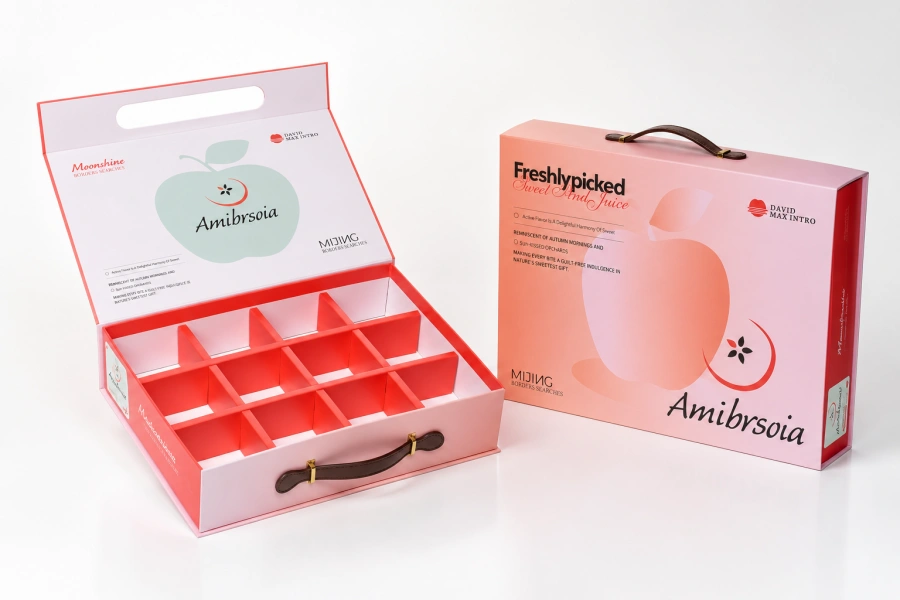

Food packaging boxes-3 Cigarette packaging box-2

Technical Parameters

Model		ZFM-700K
Maximum size	mm	450×720
Minimum size	mm	90×180
Paper weight	g	105-210
Board thickness	mm	1.0-3.0
Boards amount	Pieces	1-6
Minimum spine width	mm	8
Minimum side-board width	mm	25
Speed	Pieces/min	20-35
Positioning AccuraCy	mm	±0.2
Power supply	kw	16
Weight	kg	3500
Dimension	mm	8500×2600×1500

Component Details

Paper Feeder

HORDA is the first enterprise in the industry to adopt a professional feeder specifically designed for printing machines. It enables convenient and fast adjustment, high-speed production, and stable, reliable performance.

Gluing Unit

The paper conveying structure has an automatic constant-temperature heating function to prevent paper from sticking to the rollers due to water vapor.

Board Feeding System

The board feeding mechanism uses a Japanese Panasonic servo system, which provides high precision, high speed, and reliable performance. Its reasonable and user-friendly design improves board changeover efficiency.

Production Line Turning Mechanism

It seamlessly connects the case-making machine and the inner paper laminating machine. Finished hardcover cases are delivered to the case-lining machine through the turnover unit, helping maintain stable and efficient output while greatly reducing labor costs.

Platform-based Folding System

The mechanical edge-folding technology completes four-side folding on a single plane, which reduces scratches and gives the product a neat and attractive finish.

Visual Positioning System

The system uses a high-precision camera for accurate positioning and a manipulator to feed boards at high speed.
