Integrated Rigid Box Case Making & Lining Production Line

QZFM-700A-1000A

Integrated Rigid Box Case Making & Lining Production Line

Name: Integrated Rigid Box Case Making & Lining Production Line
SKU: QZFM-700A-1000A
Availability: InStock

Case Size: 100 × 200–600 × 1050 mm*

Production Speed: 15–25 pcs/min

Positioning Accuracy: ±0.2 mm

Integrated Process: Case Making + Inner Lining

Board Configuration: 1–6 pcs, 1.0–3.0 mm

INQUIRE NOW

Description

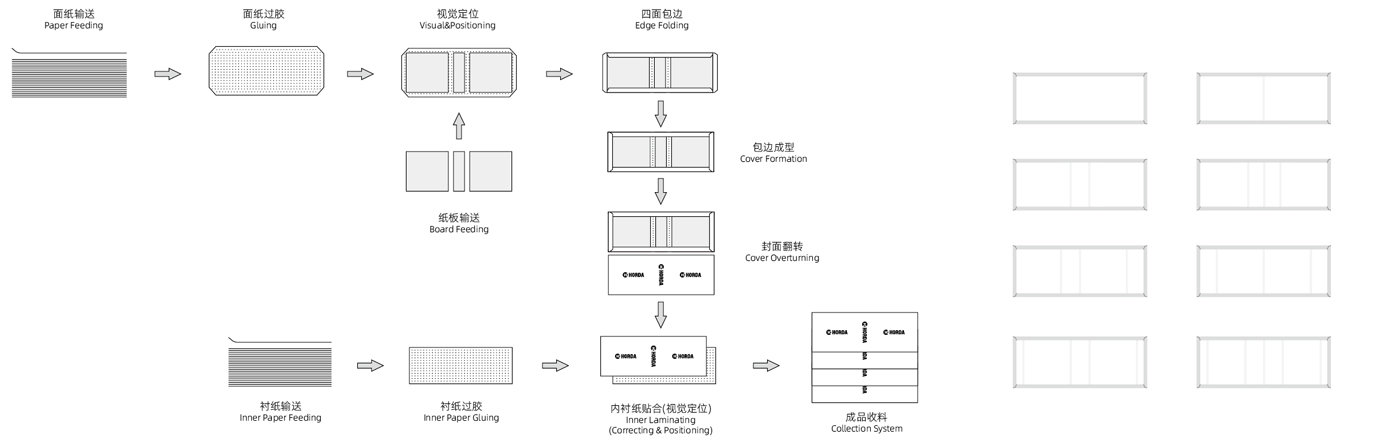

Process Flow
Technical Parameters
Component Details

Description

HORDA’s integrated rigid box case making and lining production line combines case making and inner paper laminating in one automated workflow.

By connecting case making and lining into a continuous production line, it reduces manual transfer and helps maintain consistent output and finishing quality. Its flexible configuration supports a wide range of sizes and structures for hardcover products, gift boxes, wine and spirits packaging, cosmetics and electronics packaging, fruit boxes, tea outer packaging, cigarette outer packaging and other rigid packaging applications.

Process Flow

Technical Parameters

Model		QZFM-700A	QZFM-1000A
Maximum size	mm	450×700	600×1050
Minimum size	mm	100×200	140×240
Paper weight	g	100-200	100-200
Board thickness	mm	1.0-3.0	1.0-3.0
Boards amount	Pieces	1-6	1-6
Speed	Pieces/min	15-25	15-25
Positioning accuracy	mm	±0.2	±0.2
Power supply	kw	30	34
Weight	kg	6500	9000
Dimension	mm	12000×6200×1850	15000×7900×1900

Component Details

Paper Feeder

The first enterprise in the industry to adopt professional feeder which is dedicated to printing machinet makes adjustment convenient and fast, productionin high speed, performance stable and reliable.

Gluing Unit

Paper conveying structure with automatic constant temperature heating function to prevent roller sticking paper caused by watervaper.

Board Feeding System

Cardboard feeding mechanism applies japanese Panasonic servo system, which is not only high precision, fast, but also reliable.Enhanced the board changing efficiency with the reasonable and humanized design.

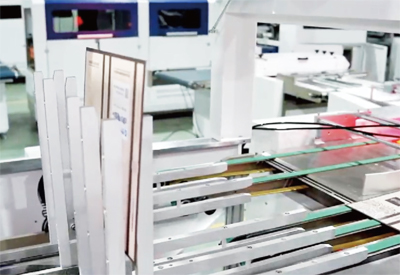

Production Line Turning Mechanism

It perfectly connects the case making machine and inner paper laminating machine together, the finished hardcover get delivered to Case lining machine through the overturning unit it helps with stable and efficient output, and decreases the la bor cost greatly.

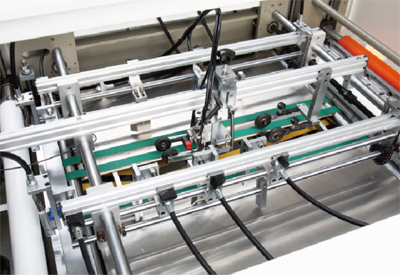

Platform-based Folding System

The mechanical edge folding technology is to complete the four-side foldingin one plane, which reduces the scratches and make the product nice and artistic.

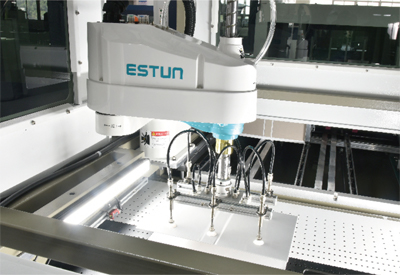

Visual Positioning System

Adopts high precision camera for accurate positioning, manipulator to feed board with rapid speed.
