ZFM-700D

Compact-Format Rigid Box Machine

Case Size: 100 × 180–400 × 700 mm

Production Speed: 10–35 pcs/min

Positioning Accuracy: ±0.2 mm

Board Thickness: 1.0–3.0 mm

Min. Spine / Side Board: 8 / 18 mm

INQUIRE NOW

Description
Process Flow
Application
Technical Parameters

Description

The ZFM-700D Compact-Format Rigid Box Machine is designed for automatic rigid case production within a working size range of 100 × 180 mm to 400 × 700 mm.

It integrates paper feeding, gluing, board positioning, corner wrapping and four-side folding into a continuous production process. Servo-driven motion control synchronizes material feeding, positioning and folding to support stable production and positioning accuracy of ±0.2 mm.

The machine supports 1–6 board configurations, board thicknesses from 1.0 to 3.0 mm, and side boards as narrow as 18 mm. It can process different case structures, corner styles and customized shapes according to product requirements.

With its practical working range and flexible board configuration, the ZFM-700D is suitable for rigid box covers, hardcover cases, premium gift packaging and other rigid case products.

Control & Electrical
TRIO Motion Controller (UK)
Leuze Photoelectric Sensors (Germany)
Schneider Electrical System (France)
Carlo Gavazzi Phase-Failure Protection Relay (Switzerland)

Motion & Transmission
PMI Linear Guideways (Taiwan)
igus Bearings (Germany)
TBI Precision Ball Screws & Ball Splines (Taiwan)
Gates Synchronous Belts (USA)

Pneumatic System
CKD Solenoid Valves (Japan)
AirTAC Pneumatic Components (Taiwan)

Process Flow

Application

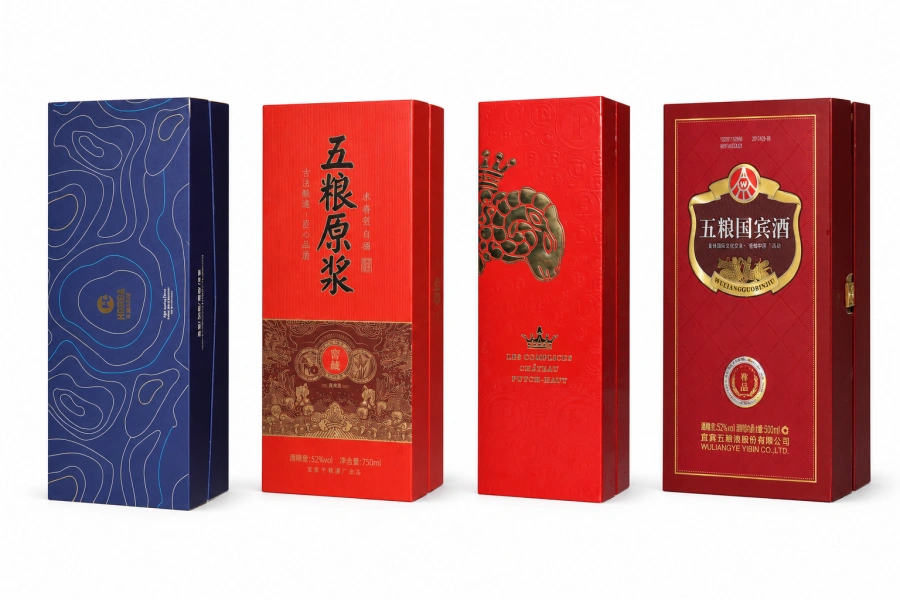

Wine packaging box-1 Wine packaging box-2

Technical Parameters

Model		ZFM-700D
Maximum size	mm	400×700
Minimum size	mm	100×180
Paper weight	g	100-200
Board thickness	mm	1.0-3.0
Boards amount	Pieces	1-6
Minimum spine width	mm	8
Minimum side-board width	mm	18
Speed	Pieces/min	10-35
Positioning accuracy	mm	±0.2
Power supply	kw	22.5
Weight	kg	3800
Dimension	mm	7300×2700×1600
